HikVision

Double-door Access Controller, Storage with 100,000 cards and 300,000 access control events.
Uplink Communication: TCP/IP 、ISUP5.0 and RS-485;
ISAPI、OSDP
Accessible Card Reader: 4 Wiegand readers or 4 RS485 readers;
Input interface: 4 alarm input, Door Sensor×2, Door Switch×2, Case Input×4, Fire Alarm Linkage×1, Tamper-proof×1;
Output interface: Door Switch Relay×2, Alarm Relay×2.

Double-door Access Controller, Storage with 100,000 cards and 300,000 access control events.
Uplink Communication: TCP/IP 、ISUP5.0 and RS-485;
ISAPI、OSDP
Accessible Card Reader: 4 Wiegand readers or 4 RS485 readers;
Input interface: 4 alarm input, Door Sensor×2, Door Switch×2, Case Input×4, Fire Alarm Linkage×1, Tamper-proof×1;
Output interface: Door Switch Relay×2, Alarm Relay×2.
UL294 Standard Qualified
With plastic case for mainboard protection
Isolate High Voltage and Low Voltage design
Power adapter included in the package（European Standard）

Access controller;
100,000 cards and 300,000 events storage;
Communication via TCP/TP, ehome5.0 and RS-485;
ISAPI, OSDP supported;
1/2/4 doors access control;
Alarm input/output and alarm event upload;
RS485 interface and Wiegand interface for accessing card reader;

Access controller;
100,000 cards and 300,000 events storage;
Communication via TCP/TP, ehome5.0 and RS-485;
ISAPI, OSDP supported;
1/2/4 doors access control;
Alarm input/output and alarm event upload;
RS485 interface and Wiegand interface for accessing card reader;
UL294 Standard Qualified;
With plastic case for mainboard protection;
Isolate High Voltage and Low Voltage design;

Access Control Terminal, 2 Mega pixels camera, Built-in M1 card, Felica card,DESfire card reading module and Bluetooth module;
AP mode
access control, video intercoms, and video all in one
IP65、IK09，increased stability with zinc alloy materials
Storage with 100,000 cards and 300,000 events;
support mobile APP hikconnect
Supports two-way audio intercom, remote live view, video recording through NVR;
Uplink Communication: TCP/IP, WIFI; Downlink Communication: RS-485;
Supports SD card

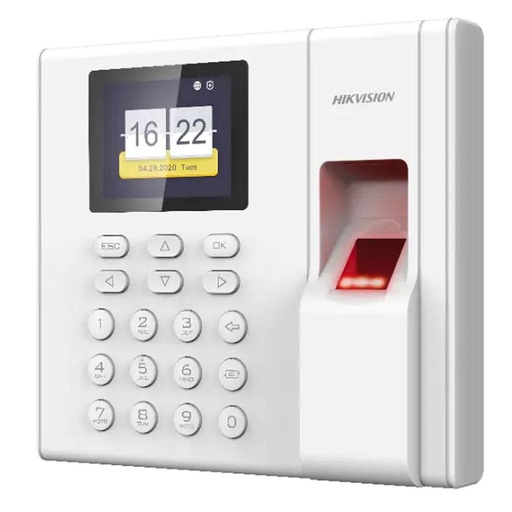

2.4 inch LCD Display Standalone Access Control Terminal, Built-in M1 card reading module,
Storage with 3,000 cards, 3,000 fingerprints and 100,000 access control events;
Support Access Control and Time Attendance Function, Optical Fingerprint Module;
Uplink Communication: TCP-IP, WIFI; Downlink Communication: RS485(Connect to Secure Module);
Supports Wiegand out(W26/W34) and Wiegand in(W26/W34).
Supports ISUP5.0, ISAPI
multiple languages: English, Spanish, Italian, French, Portuguese (Brazilian), Vietnamese, Arabic, Thai, Turkish, Indonesian, Ukrainian
Power adapter included in the package（European Standard）

Access Control Terminal, 2 Mega pixels camera, Built-in M1 card, Felica card,DESfire card reading module and Bluetooth module;
AP mode
access control, video intercoms, and video all in one
IP65、IK09，increased stability with zinc alloy materials
Storage with 100,000 cards, 10,000 fingerprints and 300,000 events;
support mobile APP hikconnect
Supports two-way audio intercom, remote live view, video recording through NVR, capacitive Fingerprint Module;
Uplink Communication: TCP/IP, WIFI; Downlink Communication: RS-485;
Supports SD card

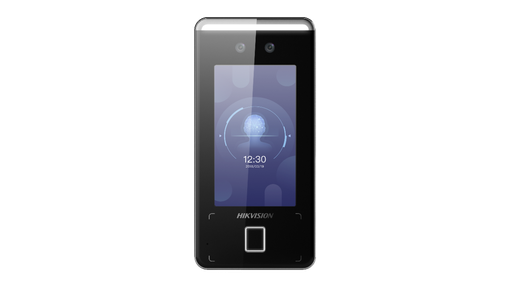

Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module;
Max.1,500 faces capacity Max.3,000 fingerprints capacity，Max.3,000 cards;
Face recognition in dark environment
Two-way audio with client software, indoor station, and master station
Supports TCP/IP,Wi-Fi,DC 12V/1A
Supports ISUP5.0, ISAPI
Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
multiple languages: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
Configuration via the web client
Face Recognition Accuracy Rate > 99%
Face Recognition Duration(1:N) ≤0.2s
Face Recognition Distance: 0.3m ~ 1.5m
Application Situation: Indoor
Power adapter included in the package（European Standard）

DS-K1T320MFWX with battery, 2500mAh

Face Recognition Terminal, 2.4-inch LCD screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module;
Max.500 faces capacity Max.1,000 fingerprints capacity，Max.1,000 cards;
Face recognition in dark environment
Supports TCP/IP,WiFi, DC 12V/1A
Supports ISUP5.0, ISAPI
Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
multiple languages: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean
Configuration via the web client
Face Recognition Accuracy Rate > 99%
Face Recognition Duration(1:N) ≤0.2s
Face Recognition Distance: 0.3m ~ 1.5m
Application Situation: Indoor
Power adapter included in the package（European Standard）

U1：Lower U-bracket of Electric Bolt, for Using with DS-K4T100.
U2：Upper and lower U-bracket of Electric Bolt, for Using with DS-K4T100.

U1：Lower U-bracket of Electric Bolt, for Using with DS-K4T100.
U2：Upper and lower U-bracket of Electric Bolt, for Using with DS-K4T100.

Turnstile Remote Controller, Communication frequency：433MHz

Secure module. Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed
Input interface: Door Magnetic×1, Tamper-proof×1, Alarm input x2;
Output interface: Door Switch Relay×1, Alarm Relay×1.
DC 12V.
Dimensions：48 mm × 115 mm × 26 mm (1.9" × 4.5" × 1.0")

M1 Contactless Smart card, Frequency: 13.56vMHz.
Designed with the PVC and AB glue
Dimension(L×W×H): 26 mm × 50 mm × 4 mm (1.02" × 1.97" × 0.16")
suggest to be used with the below reader series：DS-K1107M/MK、DS-K1108M/MK、DS-K1104M/MK

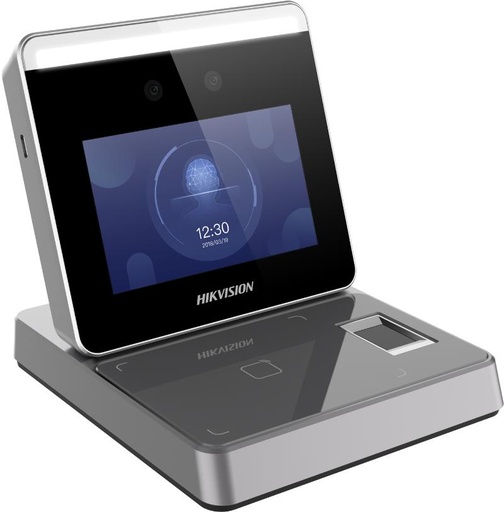

Supports enrolling face picture, fingerprint, 13.56 MHz M1 card, DESfire card,Felica card and 125KHz EM card.
3.97-inch LCD touch screen,2 Mega pixel wide-angle lens;
Supports TCP/IP, USB communication,DC 12V/2A
Dimensions：121.6 mm × 137.9 mm × 125 mm (4.8" × 5.4" × 4.9")

Supports enrolling face picture, 13.56 MHz M1 card, DESfire card,Felica card and 125KHz EM card.
3.97-inch LCD touch screen,2 Mega pixel wide-angle lens;
Supports TCP/IP, USB communication,DC 12V/2A
Dimensions：121.6 mm × 137.9 mm × 125 mm (4.8" × 5.4" × 4.9")

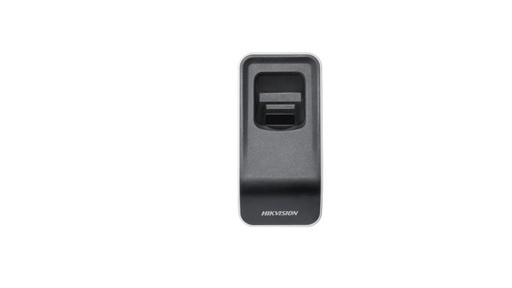

Plug-and-play USB with no-driver technology, USB 2.0;
Fingerprint enrollment for DS-K1T201, DS-K1201, DS-K1T804, DS-K1A802 and DS-K1T501.

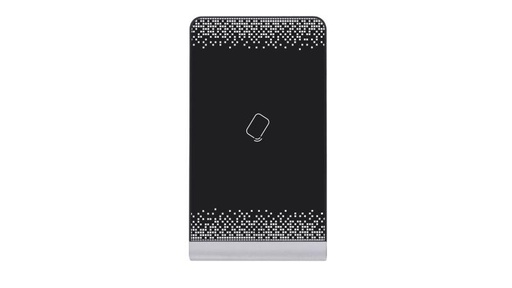

Plug-and-play USB with no-driver technology;
Supports various card types (M1 card and EM card). Card Issuer for Project Market
